When tile adhesive fails, the consequences are immediate and expensive. Tiles fall off walls. Customers complain. Your reputation suffers. I have seen manufacturers lose entire contracts because their adhesive could not meet basic bond strength requirements.
The root cause is rarely the cement or the sand. It is the additive system. More specifically, it is how Hydroxypropyl Methylcellulose (HPMC) is selected and dosed in the formulation.
Hydroxypropyl Methylcellulose (HPMC) is the most critical functional additive in modern tile adhesive. It controls water retention, extends open time, improves workability, prevents sagging, and directly influences final bond strength. Selecting the right HPMC grade and dosage can transform an underperforming tile adhesive into a premium product that meets international standards such as EN 12004 and ISO 13007.
Tile adhesive manufacturers face three fundamental challenges: controlling water loss during curing, maintaining workability for the installer, and achieving long-term adhesion on diverse substrates. HPMC addresses all three when properly optimized. But getting it right requires understanding the technical details, not just adding cellulose ether and hoping for the best.
How Does HPMC Improve Tile Adhesive Bond Strength and Workability?
Many formulators focus heavily on cement grade when troubleshooting adhesion failures. In my experience working with customers across 40 countries, HPMC selection is often the overlooked variable that makes the difference between a C1 and a C2 classification tile adhesive.

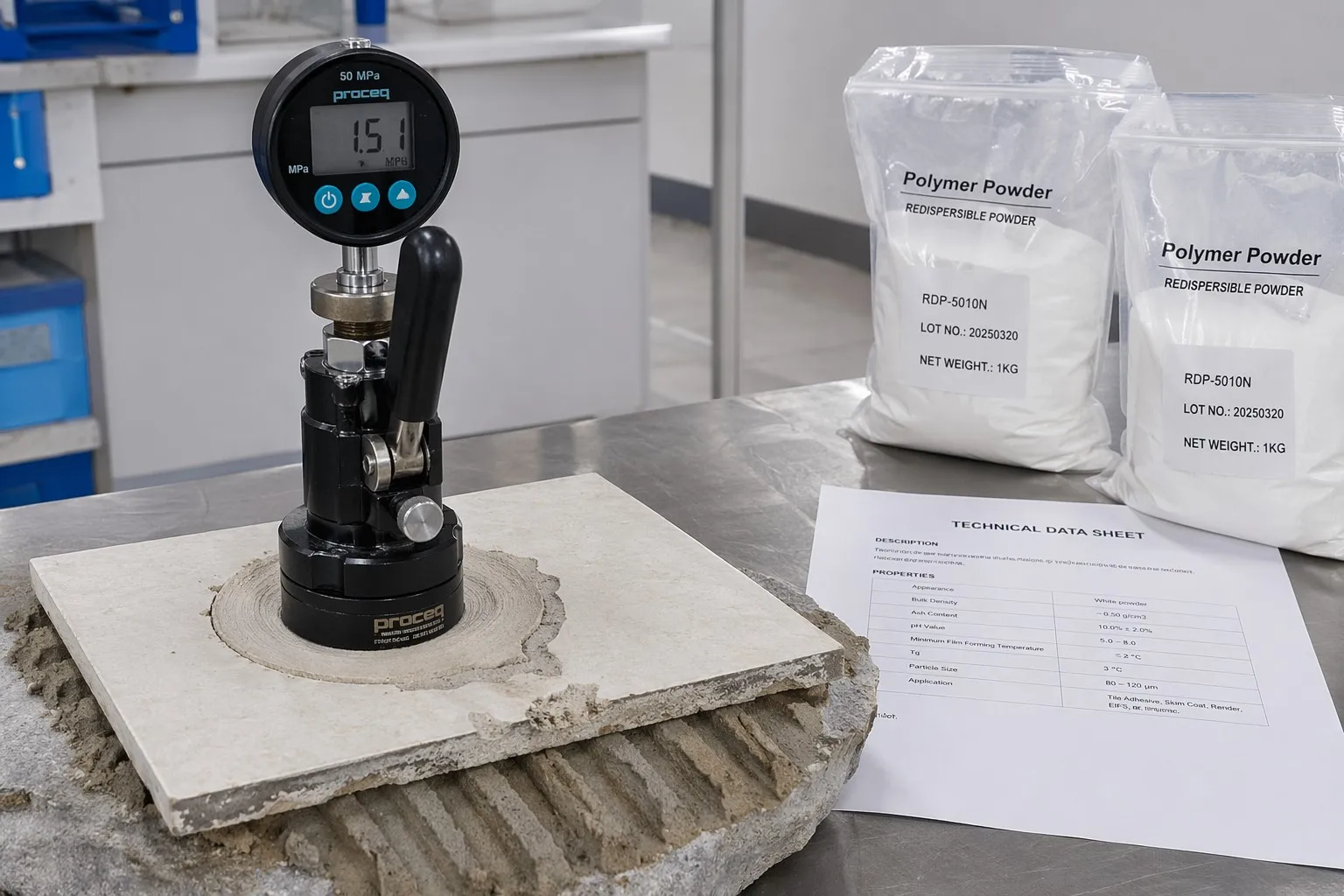

HPMC improves tile adhesive bond strength through three mechanisms: superior water retention that ensures complete cement hydration, enhanced rheology that increases substrate wetting, and controlled open time that allows proper tile adjustment without compromising final adhesion.
How Water Retention Drives Bond Strength
When tile adhesive is applied to a porous substrate like concrete or aerated block, water is rapidly absorbed into the base. Without adequate water retention, the cement at the interface dries before full hydration occurs. The result is a weak, powdery bond layer that fails under load.
HPMC forms a viscous gel network in the wet mortar that locks water molecules within the matrix. This controlled moisture release allows cement particles to hydrate completely, developing maximum strength at the bond interface.
The minimum water retention rate for a professional tile adhesive HPMC should be ≥95% when tested according to standard filter paper methods. Buyers who have switched from low-retention HPMC to a premium grade often report visible improvement — fewer tiles popping off, fewer callbacks from contractors.
Workability and Sag Resistance

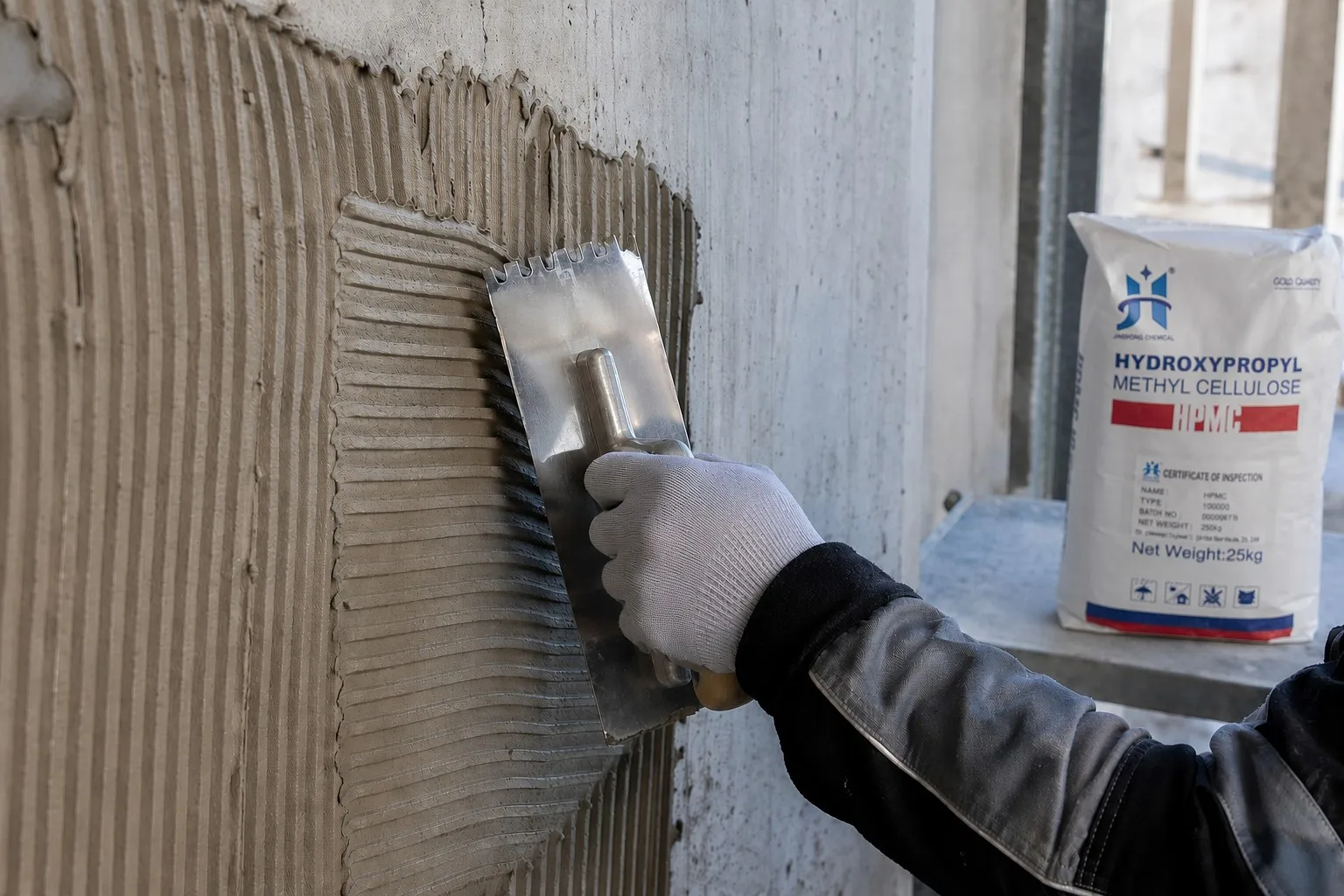

Installers judge tile adhesive quality in the first 30 seconds of use. If the mortar drags on the trowel or sags on vertical walls, they will reject the product regardless of what the technical data sheet says.
HPMC provides the thixotropic behavior that makes adhesive easy to spread yet resistant to slump. The right grade creates clean trowel ridges that hold their shape while remaining open long enough for the installer to embed tiles properly.
| Property | Without HPMC | With Optimized HPMC |
|---|---|---|
| Water Retention | < 60% | ≥ 95% |
| Open Time | < 10 min | 20–30 min |
| Sag Resistance | Poor | Excellent |
| Tensile Adhesion (28d) | < 0.5 MPa | ≥ 0.5 MPa (C1) |
| Workability | Difficult | Smooth and Easy |
If you are experiencing inconsistent adhesion results, I recommend starting with a careful review of your HPMC grade. Our Construction Grade HPMC is engineered specifically for cement-based tile adhesives with proven water retention above 95% and batch-to-batch viscosity consistency.
How to Select the Right HPMC Viscosity Grade for Your Tile Adhesive Formulation?
One of the most common questions I receive from new customers is: "Which viscosity should I use?" The answer depends on your specific adhesive type, tile format, and application conditions.
The optimal HPMC viscosity for standard tile adhesive ranges from 40,000 to 60,000 mPa·s. This range balances water retention, workability, and cost-efficiency. Lower viscosities (20,000–40,000 mPa·s) suit thin-bed applications, while higher viscosities (60,000–100,000 mPa·s) are recommended for large-format tile adhesives and hot-climate formulations.
Matching Viscosity to Application
Standard ceramic tile adhesives for moderate climates perform best with medium-viscosity HPMC (40,000–60,000 mPa·s). This range provides sufficient water retention without making the mortar excessively sticky.
For large-format tiles (≥ 60 cm × 60 cm) or heavy natural stone, a higher viscosity HPMC is necessary. These tiles exert greater downward force and require stronger sag resistance. I recommend 60,000–100,000 mPa·s for these demanding applications. The higher viscosity creates a stronger internal structure that holds heavy tiles in place during curing.
Working in hot climates above 35°C changes the equation entirely. Higher ambient temperatures accelerate water evaporation and dramatically reduce open time. Consider moving up one viscosity grade or switching to MHEC (Methyl Hydroxyethylcellulose), which offers a higher gel temperature for consistent performance in extreme heat. Our HEMC product also provides excellent thermal stability for tropical and desert markets.
Dosage: The Precision Factor
The typical HPMC dosage for tile adhesive is 0.15%–0.30% of total dry powder weight. Below 0.15%, water retention is insufficient and the adhesive dries too fast. Above 0.35%, the mortar becomes overly sticky, entrains excess air during mixing, and increases raw material cost without proportional performance gain.
| Tile Type | HPMC Viscosity (mPa·s) | Typical Dosage | Key Performance |
|---|---|---|---|
| Standard Ceramic | 40,000–60,000 | 0.15–0.25% | Balanced water retention |
| Porcelain | 40,000–60,000 | 0.20–0.30% | Higher bond strength |
| Large Format (>60cm) | 60,000–100,000 | 0.20–0.35% | Maximum sag resistance |
| Hot Climate | 60,000–100,000 | 0.20–0.30% | Extended open time |
I always recommend requesting free samples to test different viscosity grades in your specific formulation before committing to bulk orders. Our laboratory can help match the right grade to your raw materials, local climate conditions, and application requirements.
How to Balance HPMC and RDP for Maximum Tile Adhesive Performance?
HPMC alone cannot deliver the full performance profile that modern tile adhesives demand. The combination of HPMC and Redispersible Polymer Powder (RDP) is what separates commodity adhesives from premium products that meet C2, C2S1, and C2S2 classifications.
HPMC provides water retention and workability in the fresh state. RDP delivers adhesion, flexibility, and durability in the hardened state. The optimal HPMC-to-RDP ratio depends on the performance class you are targeting. For C1 classification, a low RDP dosage (1–3%) combined with quality HPMC may suffice. For C2, especially C2S1 or C2S2, higher RDP (3–5%) and optimized HPMC are both necessary.
The Synergistic Mechanism
In the fresh mortar, HPMC controls the water needed for proper RDP dispersion and film formation. Without sufficient water retention from HPMC, RDP particles cannot fully redisperse and coalesce into a continuous polymer film. This is why upgrading HPMC quality often allows formulators to extract more performance from the same RDP dosage.
In the hardened mortar, RDP forms a flexible polymer network that bridges cement particles and improves adhesion to difficult substrates. This polymer film also absorbs micro-movements caused by thermal expansion and substrate deformation, reducing the risk of tile delamination over time.
I have seen manufacturers reduce RDP dosage by 0.5–1% simply by switching to a more efficient HPMC grade with superior water retention. The cost savings on polymer powder alone can offset the entire HPMC cost — while improving adhesion performance.
Formulation Optimization by Classification
For basic C1 tile adhesives, focus on HPMC quality and target 1–2% RDP. For C2 adhesives requiring high tensile adhesion after water immersion and heat aging, increase RDP to 3–5% and ensure your HPMC maintains consistent water retention across all production batches.
For deformable adhesives (S1/S2), the polymer system becomes even more critical. RDP/VAE powder with high ethylene content provides the flexibility needed for these demanding classifications. Always refer to EN 12004 and ISO 13007 testing protocols when designing for specific classifications.
| Classification | HPMC Dosage | RDP Dosage | Key Requirement |
|---|---|---|---|
| C1 | 0.20–0.25% | 1–3% | ≥ 0.5 MPa adhesion |
| C2 | 0.20–0.30% | 3–5% | ≥ 1.0 MPa adhesion |
| C2S1 | 0.20–0.30% | 4–6% | ≥ 2.5 mm deformation |
| C2S2 | 0.20–0.35% | 5–8% | ≥ 5.0 mm deformation |
For a deeper understanding of how HPMC and RDP work together, read our detailed guide on HPMC and RDP Synergy in High-Performance Mortars. If your adhesive includes self-leveling or repair mortar lines, our RDP dry mortar formulation guide covers dosage optimization by application type.
Conclusion
Optimizing tile adhesive performance with HPMC is not about using the most expensive grade or the highest dosage. It is about precision — matching viscosity to tile format, balancing HPMC with RDP, and maintaining consistent quality from batch to batch.
Every formulation decision should answer one question: will this improve the final bond between tile and substrate for the end user?
At Jinghong Chemical, we produce HPMC in our own factory with automated production lines and a professional laboratory that tests every batch for viscosity, water retention, moisture content, and ash content. Our rigorous quality control process ensures that every shipment performs consistently in your production line.
FAQ
Q: What is the ideal HPMC viscosity for standard ceramic tile adhesive?
A: 40,000–60,000 mPa·s is ideal for standard ceramic tile adhesive in moderate climates. This range provides optimal water retention, workability, and sag resistance. For large-format tiles or hot climates, consider 60,000–100,000 mPa·s.
Q: Can HPMC alone provide C2 classification tile adhesive performance?
A: No. HPMC provides water retention and workability, but C2 classification (≥1.0 MPa adhesion after water immersion and heat aging) requires RDP at 3–5% dosage. The combination of optimized HPMC and RDP is essential for premium tile adhesive.
Q: How do I test whether my HPMC supplier provides consistent batch quality?

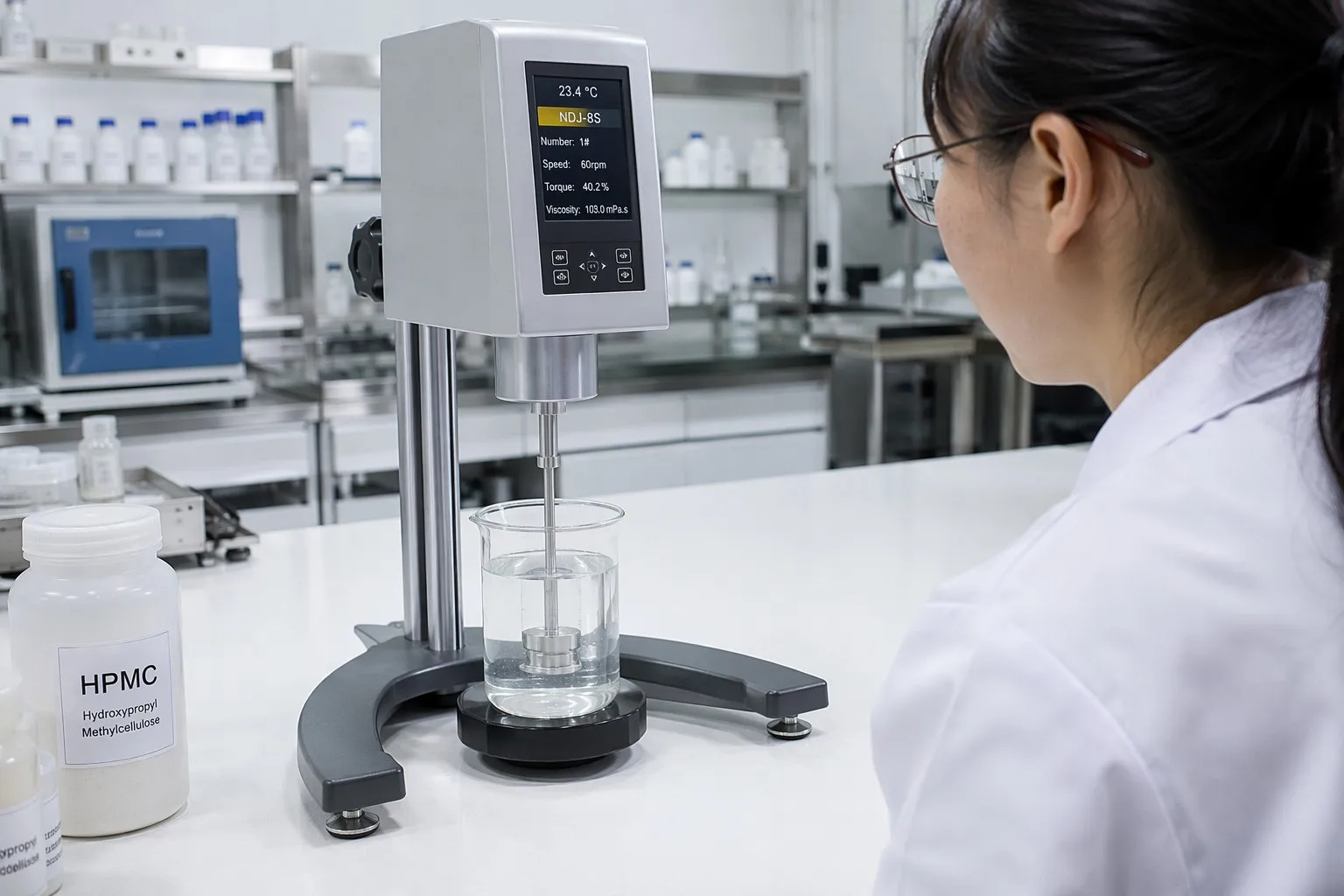

A: Test three key parameters on every batch: viscosity (Brookfield, 2% solution at 20°C), water retention rate (standard filter paper method), and moisture content (≤5%). Reputable suppliers provide COA documentation and welcome customer laboratory verification.
